Sliding table saw MJ1132F makes panel cutting easy and flexible. Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment. Height of saw blade can be adjusted electrically, main saw blade rotating speed up to 5200rmp and max. cutting length 3100mm. You could use to cut all sorts of panels through simple operation just as your requirements.

Highlights

  • Strong machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

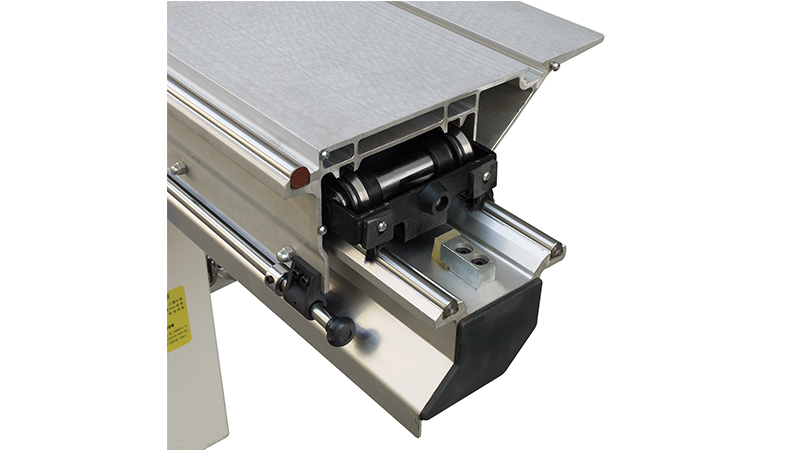

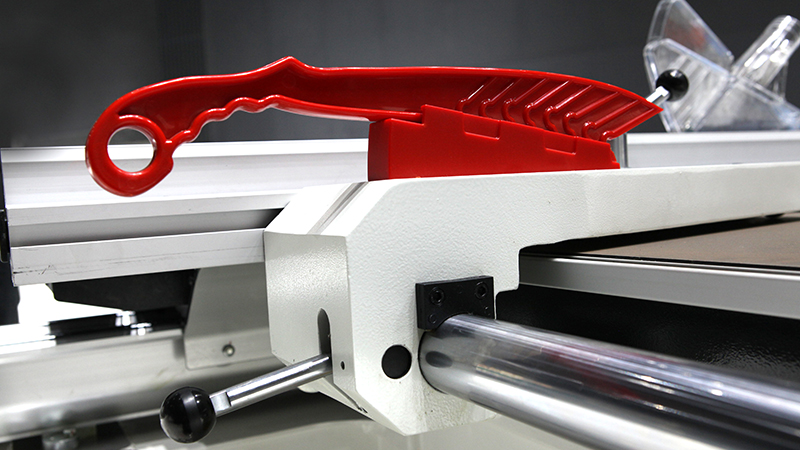

  • Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.

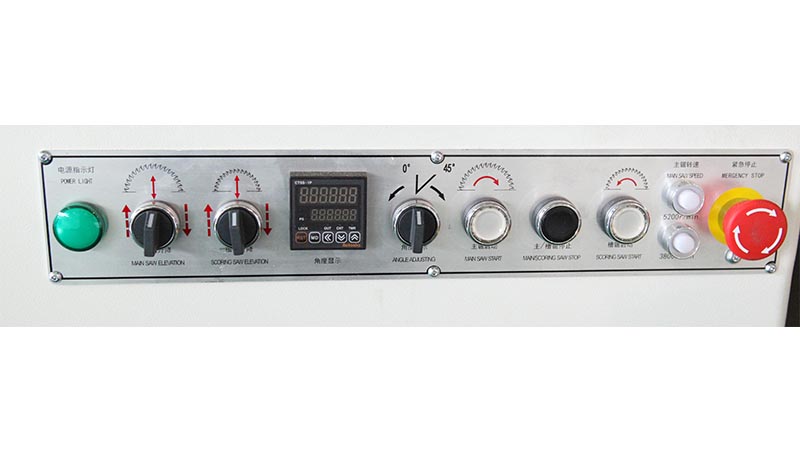

  • Height of saw blade can be adjusted electrically just by one button.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.
  • Optional MJ1138F for your choice for cutting max 3.7m panel.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model MJ1132F
Cutting Max. cutting length 3,800mm
Max.cutting thickness 120mm
Cutting crosswise cutting length 2500mm
Main saw Motor power 18kw x2
Rotating speed 3910rpm/min
Scoring saw Rotating speed 4150rpm/min
Saw carriage Motor power 2kw
Forward speed 90m/min
Backward speed 120m/min
Auto feeding speed 85m/min
Saw carriage forward speed 85 m/min
Saw carriage backward speed 100 m/min
Air blower 3*2.2kw
Air Requirement 0.6 MPa
Dust extractione φ150mm×6
Clamp qty Lengthwise saw 6pcs
crosswise saw 8pcs
Total power 73.5kw
Overall size 9200x11600x2020mm
Net weight 19000kg
