High cost-efficiency, height and angle of saw blades can be adjusted by using hand wheel, easy to operate.

Highlights

  • Strong machine body for great stability and longer service life.

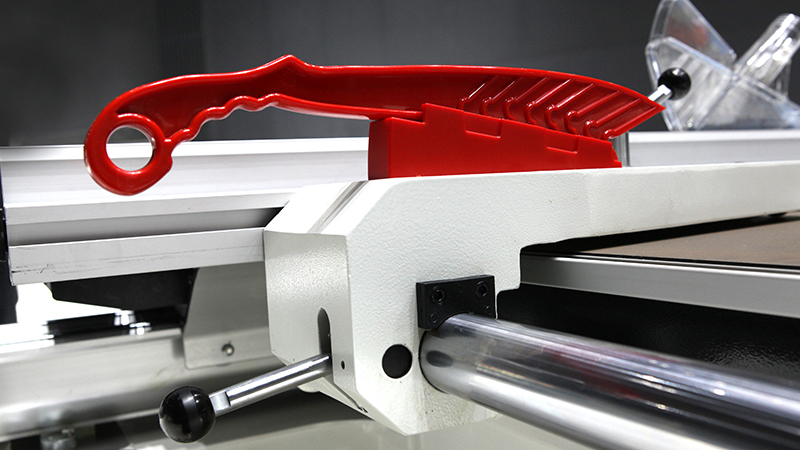

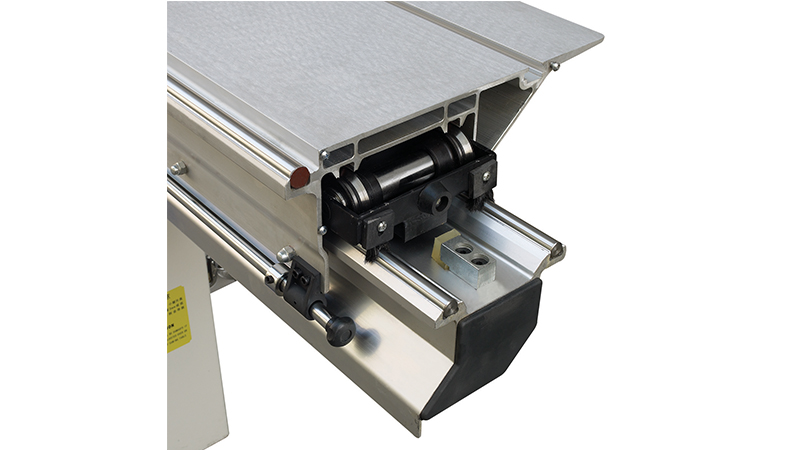

  • Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.
  • Height of saw blade can be adjusted easily by hand wheel.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.
  • Optional MJ1138M for your choice for cutting max 3.7m panel.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model MJ1132M MJ1138M
Cutting length 3100mm
 3700mm
0°cutting thickness 100mm 100mm
45°cutting thickness 70mm 70mm
Main saw Motor power 5,5kw
Rotating speed 3800/5200rpm/min
 Motor power 5,5kw
Rotating speed 3800/5200rpm/min
Scoring saw motor 1.1kw 1.1kw
Scoring saw Rotating speed 9000rpm/min Rotating speed 9000rpm/min
Saw blade angle 0-45° 0-45°
Dust extraction φ120mm φ120mm
Total power 6.6kw 6.6kw
Overall size 3400×3380×1400mm 3400×3380×1400mm
Net weight 785kg 830kg
