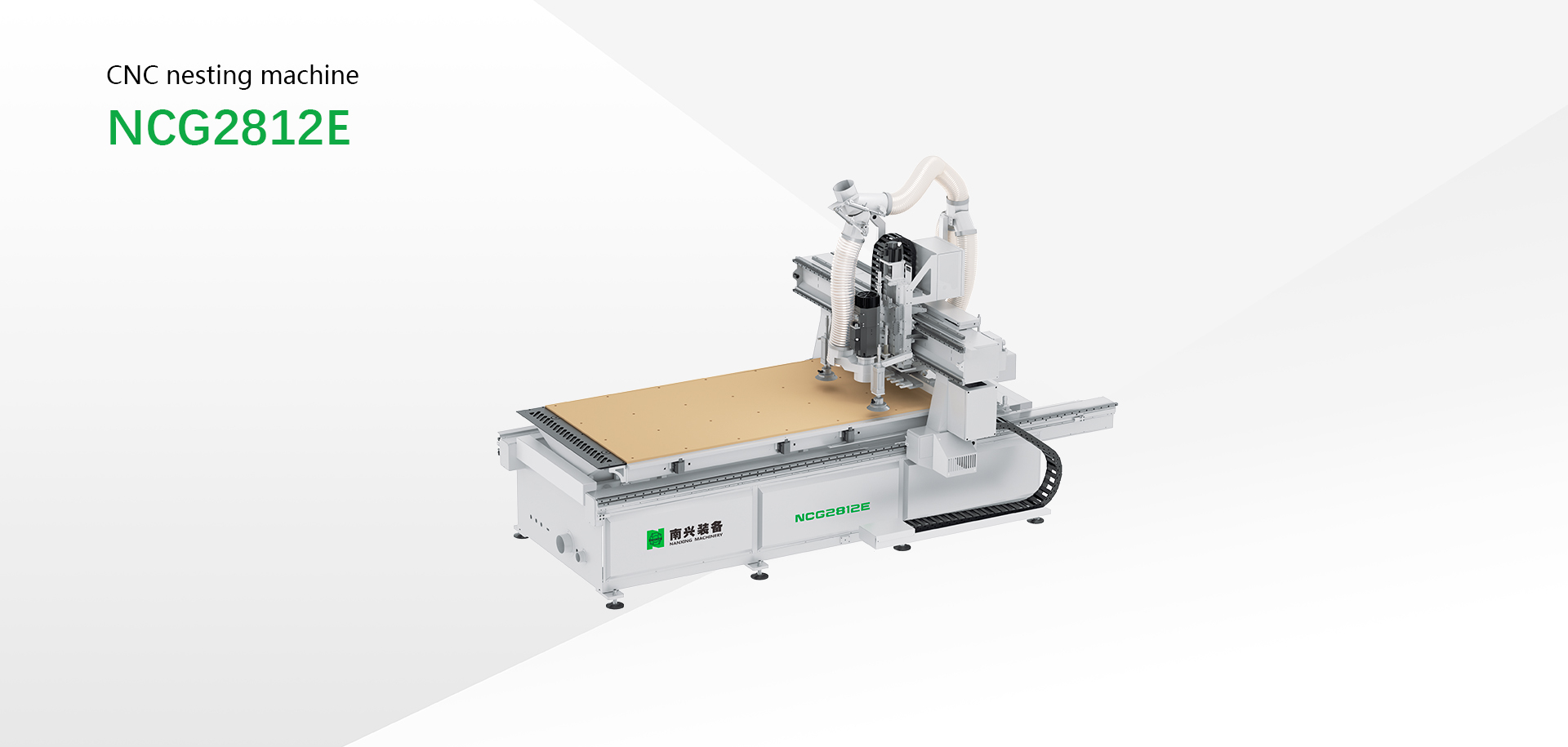

NCG2812E with 4 high-speed main spindles is able to meet various processing requirements like nesting, shaping, grooving, top side boring. Max. speed along X & Y direction up to 50m/min, auto feed-in and out table improve the efficiency, save labor. IPC control with window 7 operation system of high stability and ease of operation. Optional NCG2513LE with additional auto loading and unloading tables.

Highlights

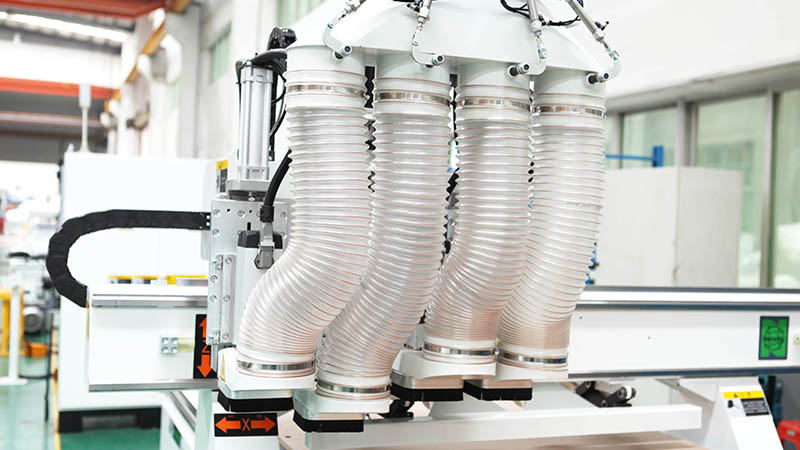

• 3 pcs 3.5kw main spindles plus 1 pc 6kw main spindle make it possible to meet complicated processing requirement including top boring, grooving, nesting and routing some shapes.Collet type: ER32;

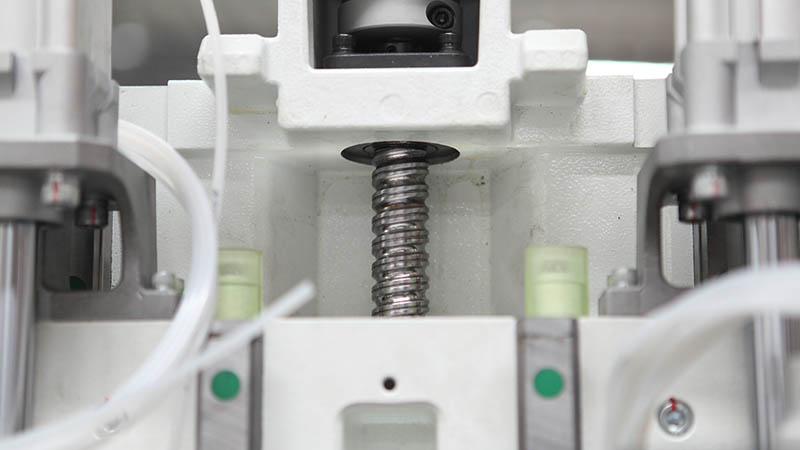

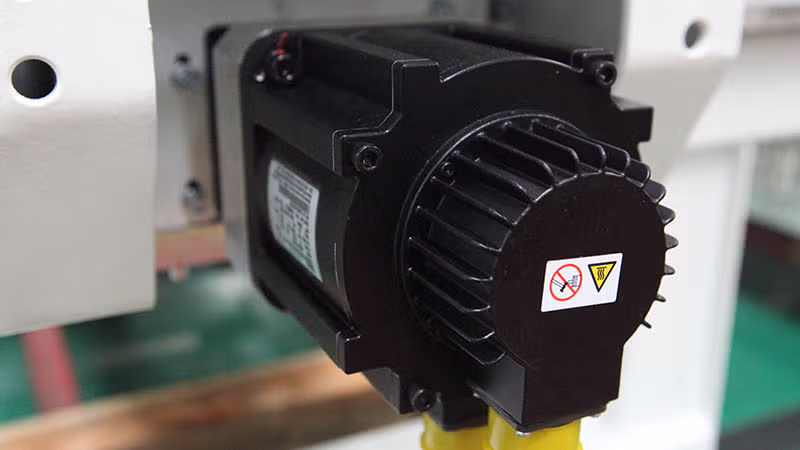

• Movement of Z axis by ball screw rod. The accurate movement of each axis is ensured by high quality servo motors;

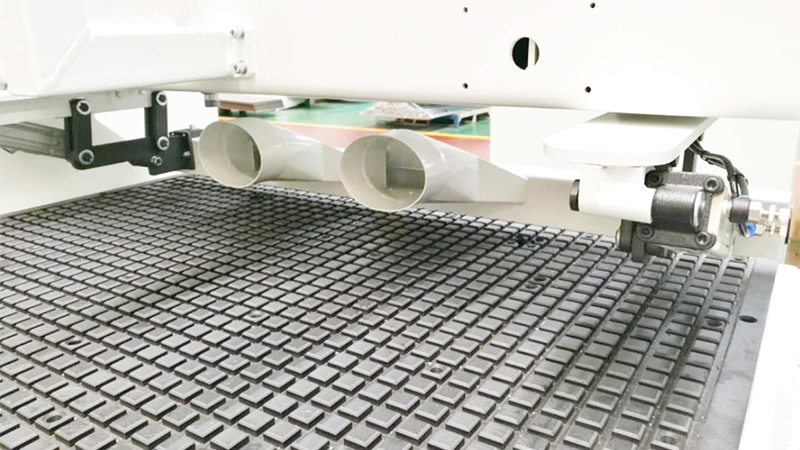

• Machine is equipped with a pushing device which give unloading finished workpieces work max convenience;
• Daily grease work of transmission parts is so easy to do by using lubrication pump.
• Independent control cabinet with organized wire and high-quality electric components. IPC with Windows operation system.
