Highlights

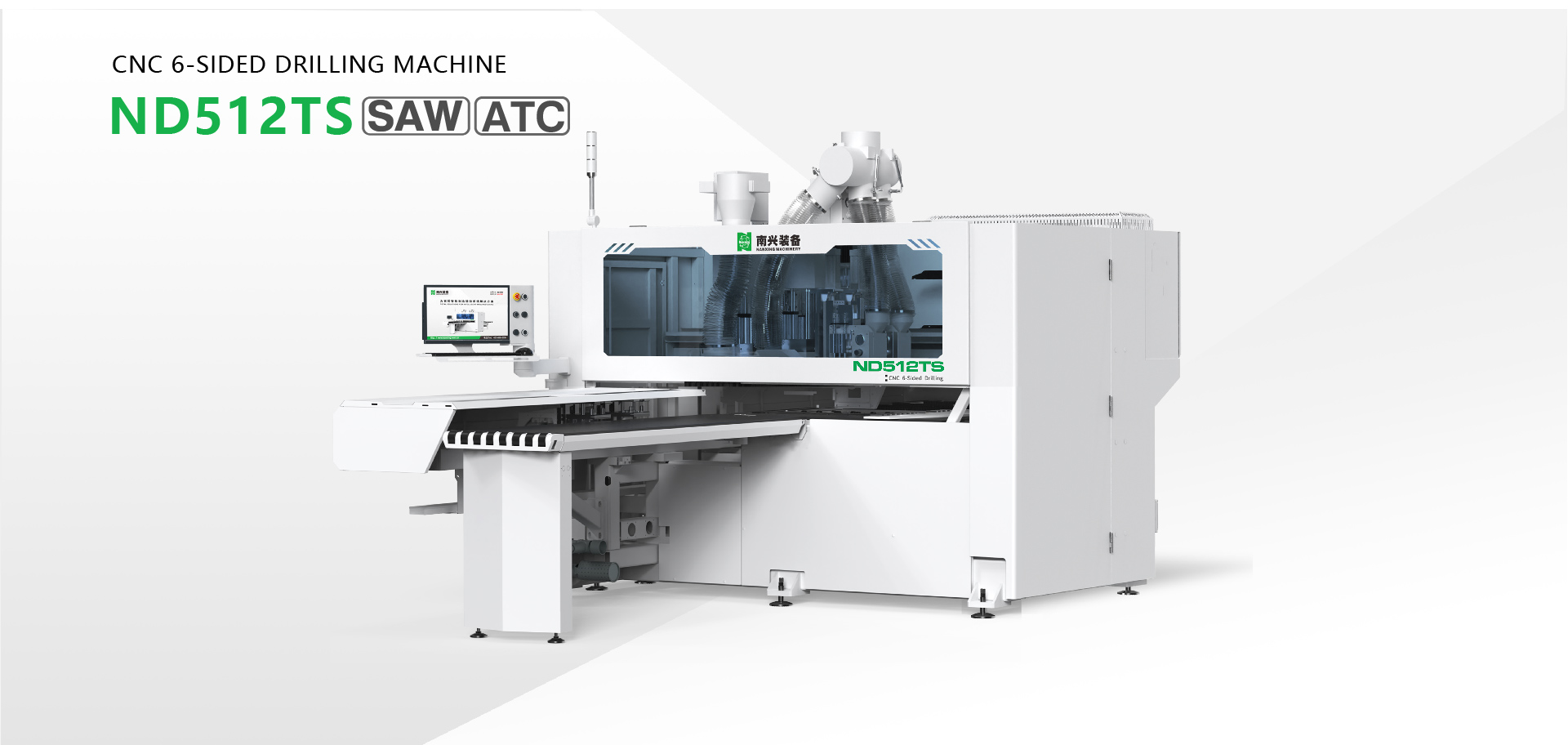

  • Multi-functional CNC drilling machine is able to drill from 6 sides.
  • Simple routing meets different process requests and gives batch-size-one production max flexibility.
  • Software is open port, support most formats in market.
  • Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model ND512TS
Panel size Thickness：10-60mm
Width：30-1200mm
Length： 200- 2800mm
Max speed（X/U/Y/Z） 135/135/75/30/30(Vaxis)m/min
Spindle power top：5.5kw，bottom：3.5kw
Vert.drill 10
Horiz. drill X direction：2×2  Y direction：2×2
Total power 21.07kw
Control system SYNTECH
Machine size 3962×3010×2320mm
