Highlights

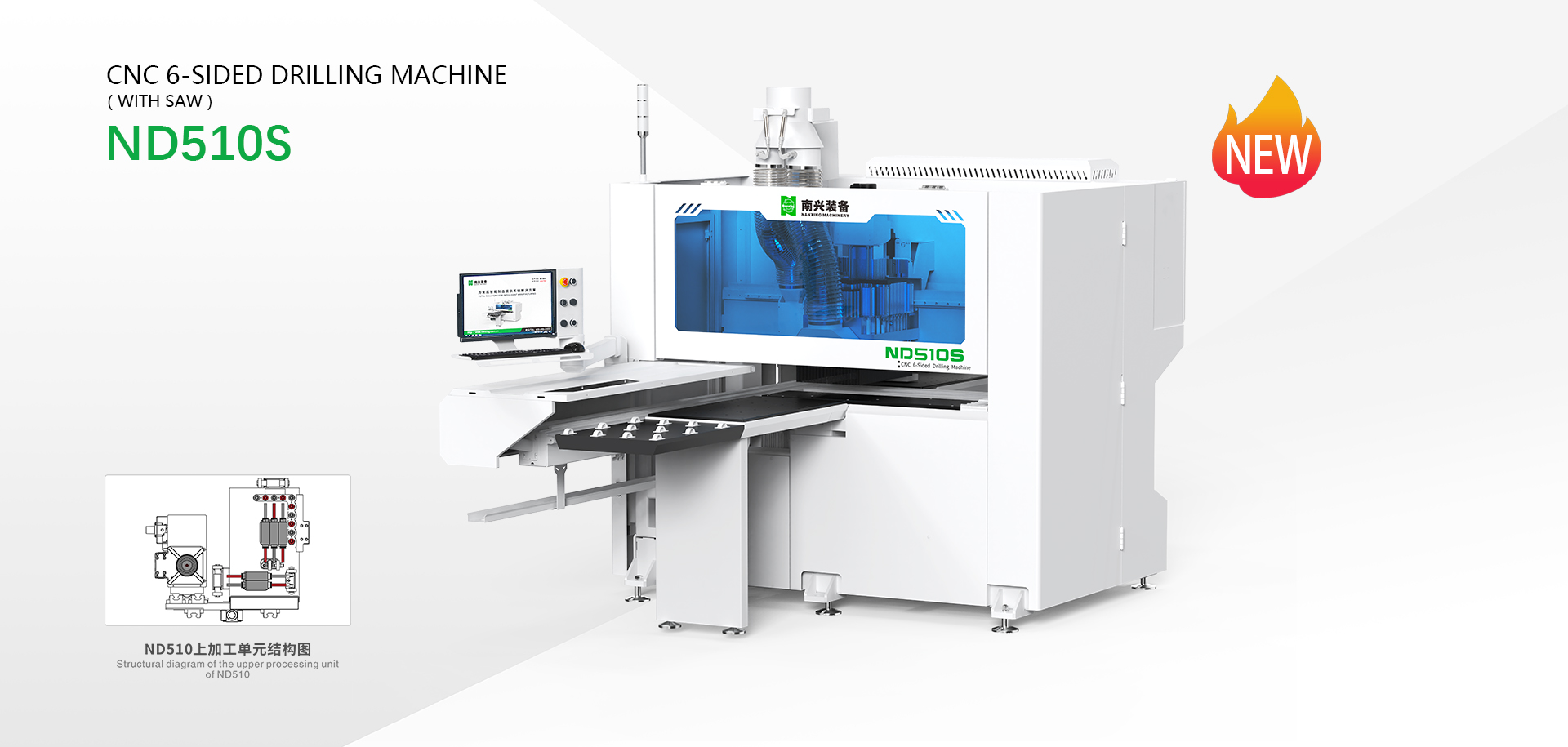

  • Multi-functional CNC drilling machine is able to drill from 6 sides.
  • Top grooving.
  • Simple routing meets different process requests and gives batch-size-one production max flexibility.
  • Software is open port, support most formats in market.
  • Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.
  • Compact design, save space.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model ND510S
Panel size Thickness：10-60mm  \
Width：30-1200mm
Length： 200- 3000mm
Max speed（X/U/Y/Z） 135/135/75/30/30(Vaxis)m/min
Spindle power Top：3.5kw
Air supply 0.6-0.7MPa
Vert.drill 10 / 9
Horiz. drill X direction：6  Y direction：4
Total power 13.8kw
Control system SYNTECH
Machine size 3962×2222×2271mm
