Highlights

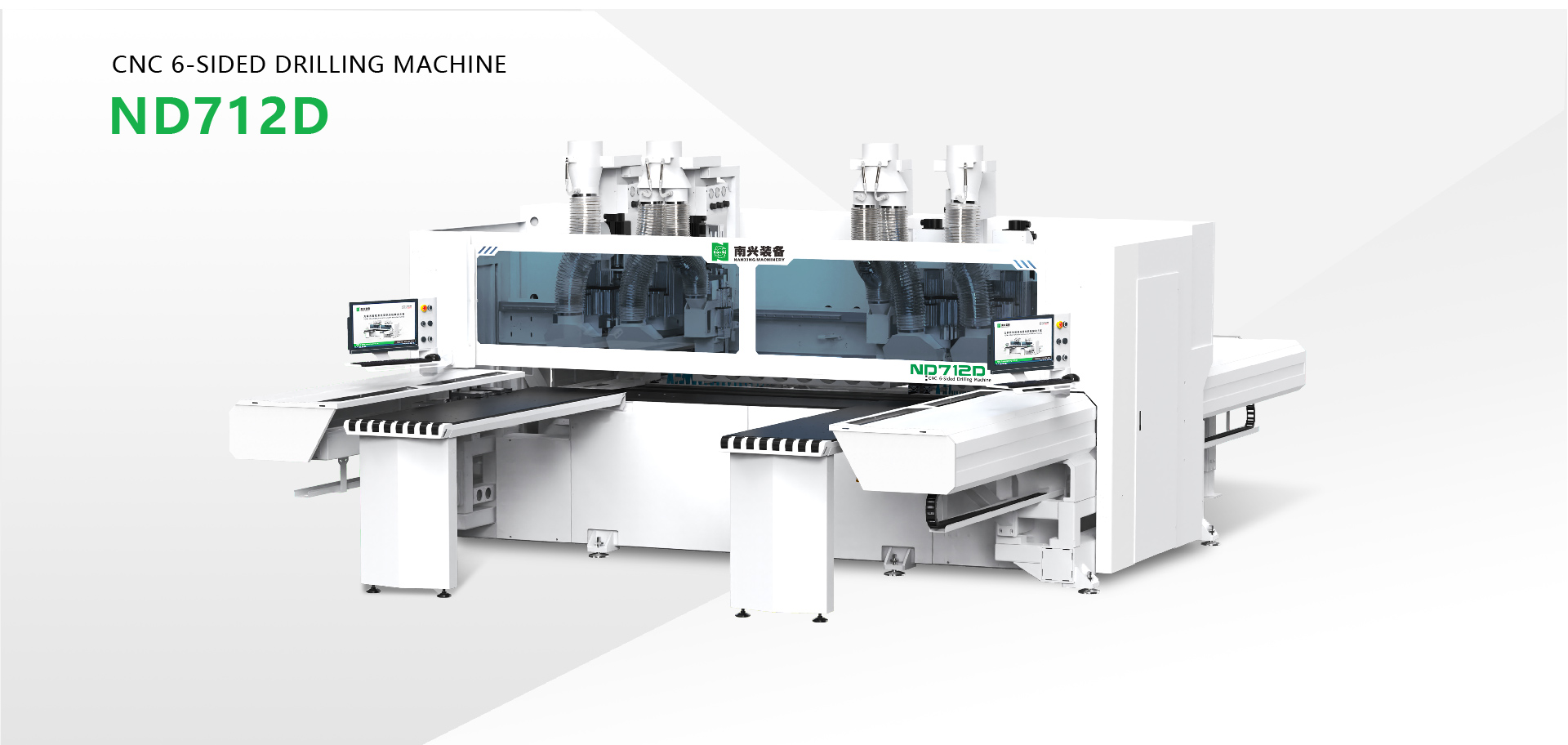

  • ND712DL is designed to have 2 independent work stations by integrating 2 machines on one machine, thus double the efficiency with less space requirement compare. Integrated machine body structure of high rigidity offers the whole machine longer service life and stably fast processing.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model ND712D
Panel size Thickness：10-60mm  \
Width：30-1220mm
Length： 200- 2800mm
Panel size（Right） Width: 30-650mm
Max speed（X/U/Y/Z） 135/135/75/30/30(Vaxis)m/min
Spindle power 3.5kw×2 / 3.5kw×2
Rotation speed 5000rpm
Top Vert.drill 19×4
Top Horiz. drill​ qty X: 3×8 + Y: 2×8
Bottom vert.drill 9×2
Total power 43.9KW
Control system SYNTECH
Machine size 6600×4620×2620mm
