Highlights

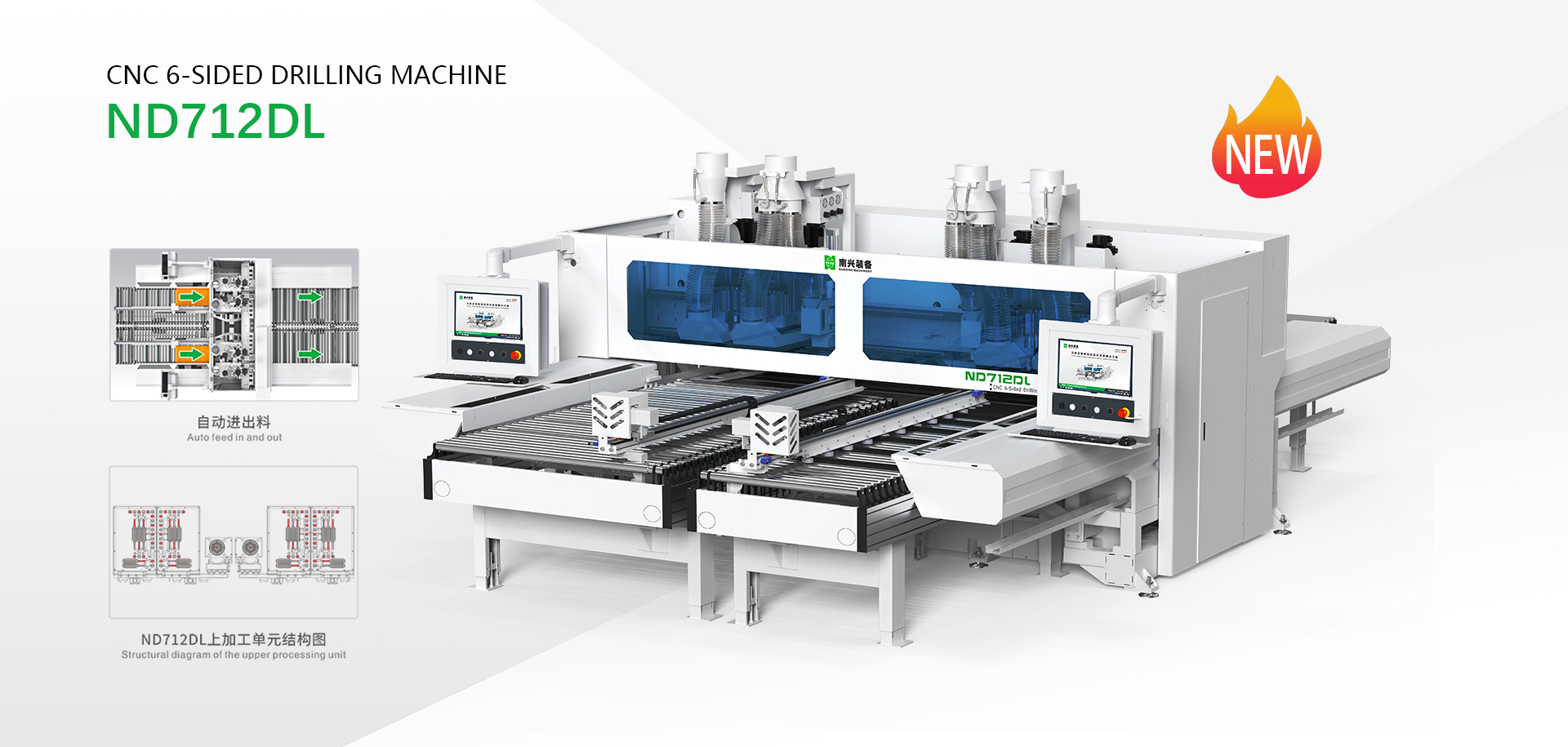

  • ND712DL is designed to have 2 independent work stations by integrating 2 machines on one machine, thus double the efficiency with less space requirement compare. Integrated machine body structure of high rigidity offers the whole machine longer service life and stably fast processing.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

Model ND712D​L
Panel size Thickness：10-60mm  \
Width：30-1220mm
Length： 200- 3000mm
Panel size（routing） Thickness 12-50mm
Width 65-1200mm
Length 250- 2400mm
Max speed（X/U/Y/Z） 135/75/30m/min
Spindle power 4*3.5kw max.18000rpm
Rotation speed 5000rpm
Top Vert.drill 19×4
Top Horiz. drill​ qty X: 3×8 + Y: 2×4
Bottom vert.drill 9×2
Total power 48.36KW
Control system SYNTECH
Machine size 7400*4470*2380
