Highlights

  • Nanxing has invested hundreds of millions for taking in 500 world best CNC and robot machines for metal works, making its production ranked No.1 in the woodworking machinery industry. SOP professional assemble lines.
  • Powerful SYNTECH CNC CONTROL SYSTEM equipped with specialist software to run for high process efficiency and easy operation, the fastest in the field.
  • 2topdrilling blocks with drills Ver. 19×2 plus Horz. X direction 3×4 &Y 2×4，1 bottom drilling block with ver. 9. . Top and bottom have 5.5kw ATC spindle router of 6-slot. And independent saw.
  • Adapt7kindsof file format and common furniture design software.
  • CustomerReference: 30+ countries; 2000+ machines.

Do you need more information?
Contact Us Now​!

+357 77 770629

This email address is being protected from spambots. You need JavaScript enabled to view it.

INFORMATION FORM

Technical Data

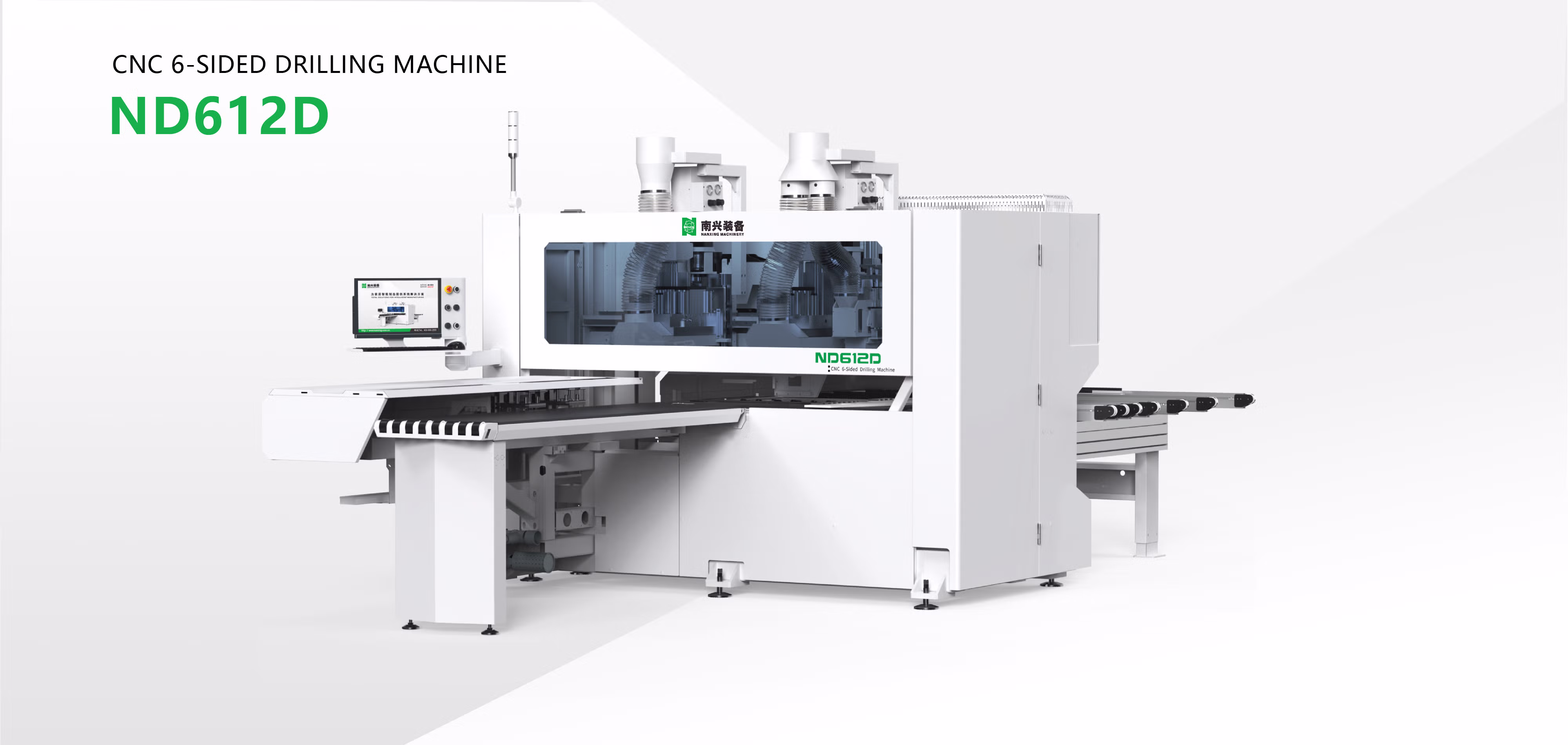

Model ND612D
Panel size Thickness：10-60mm  \
Width：30-1150mm
Length： 200- 2800mm
Max speed（X/U/Y/Z） 135/75/30m/min
Main Spindle power Top：3.5kw，Bottom：3.5kw
Vert.drill 19​ x2
Horiz. drill X direction：3×4  Y direction：2×2
Control system SYNTECH
Overall dimension 6150×2810×2320mm
