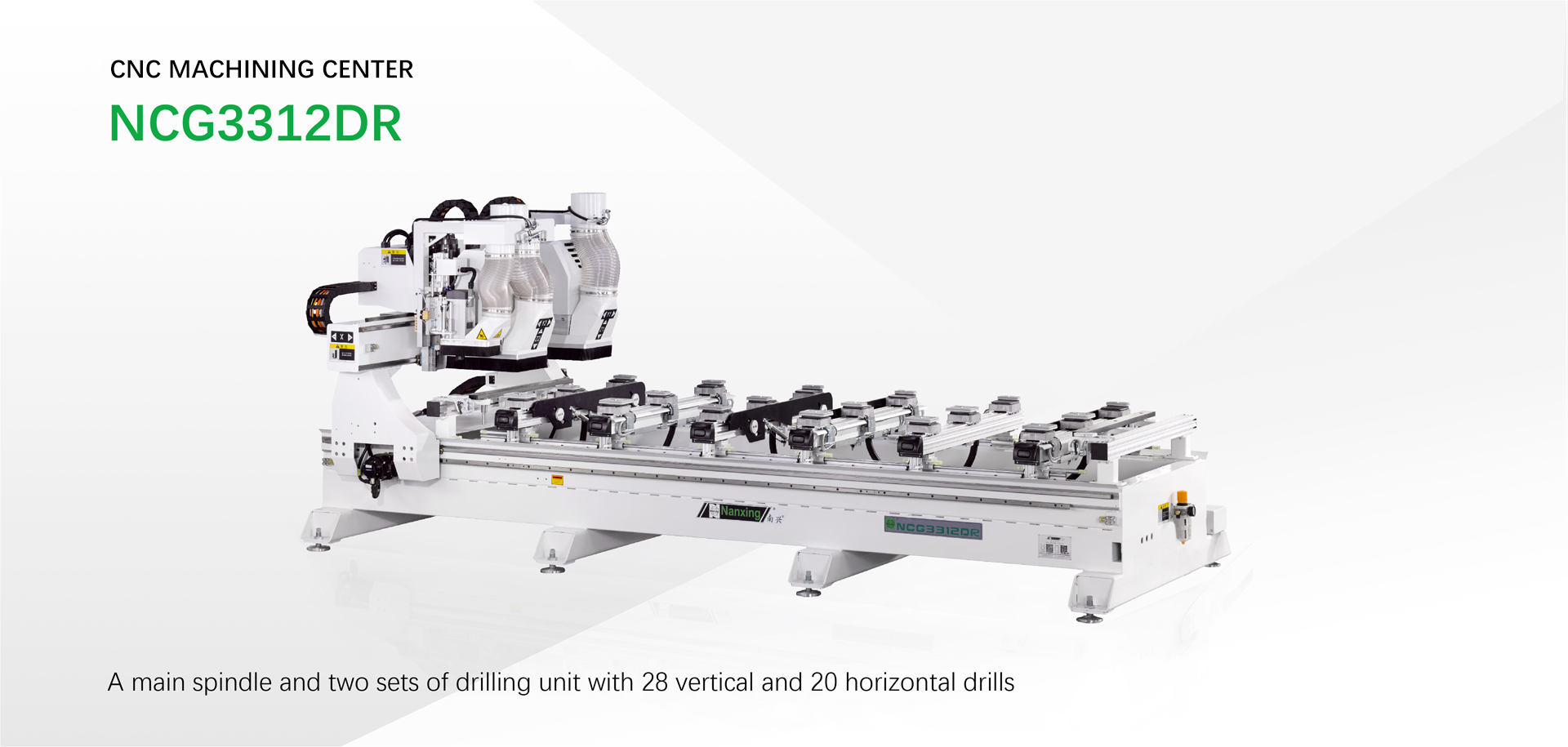

NCG3312DR is mainly used for custom furniture drilling and grooving. Adopting 3300*1250mm beam table, NCG3312DR is able to improve the production efficiency by dual working station. X, Y, Z axis are both equipped with high precision servo motor and professional operating software, contains the functions as processing graphic display and information, graphic edit and order data display and so on. This device is perfectly connecting with furniture making software to finish processing holes in 5 surfaces and grooving without programming and adjustment.
Option:
NCG3312DA -- beam table and suction pads move automatically through servo control​Sample text. Click to select the Text Element.

Highlights

• Heavy duty triangle support structure bed structure machine body and most mechanical machine parts are proceed by advanced CNC machines within Nanxing factories and through strict QC inspection hence higher stability and longer service life without deforming ;
• Boring holes in 5 surfaces and grooving and routing on top;
• This machine is equipped with a main spindle and two sets of drilling unit, and it contains 28 vertical and 20 horizontal drills. Each drilling unit and drill is working independently;
• Equipped 6 rails with vacuum pods, sliding freely on table. SCHMALZ vacuum pods, 8 full size，6 half size，4 small size which are suitable for different machining requests;
• Min Panel width even up to 50mm thanks to a positioning assistant for narrow panels;
• SYNTEC control system provides stable performance, powerful functions and ease of use with friendly interface. (English and Chinese language are available).
